PVC Marble Sheet Unmanned Plc Control Plastic Production Line Extruder Making Machine

PVC Marble Sheet Unmanned Plc Control Plastic Production Line

Product Description

PVC imitation marble profile making machine, with the domestic advanced extruder machine, heating extruding.environmental protection non-toxic, wear-resistant, scratch resistant, skidproof, waterproof, fireproof and so on. Compound PVC imitate marble line, stone plastic line has the structure of multilayer, the surface uses UV treatment, contains chromatic layer, stone plastic layer and basic layer. The stability of wear resistance, stain resistance,dimension is better and colorful. It is the popular line in the market and decoration.

Processing Flow:

500/1000 Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→ Three calender(online laminating) →Edge cutter→Hual off machine→ Transversal cutter → Conveyor→UV treatment →Final PVC marble sheet

Detailed Photos

SJSZ80/156 Conical Double Screw Extruder

Extrusion Die
*Connection method of T-die and machine head: Flange type with bolt connection
*Die model: Cloth rack type
*Width of die layer: 1350mm
*Height of die lip open: 2mm-8 mm

Three-roller calender
*High quality seamless steel tube
*The roller surface with quenching treatment, then chrome plated and polished
*The hardness of base material >HRC50
*The inner structure of roller : reinforced type

Oil temperature quadruple controlling system
*Model :Stand alone type
*Heat-conducting medium :High temperature heat conducting oil
*Cooling medium :Soft water
*Temperature control accuracy :±1 degree
*Heating unit :1,Stainless steel electric heating rod
2,Heating power:16KW*3=48KW

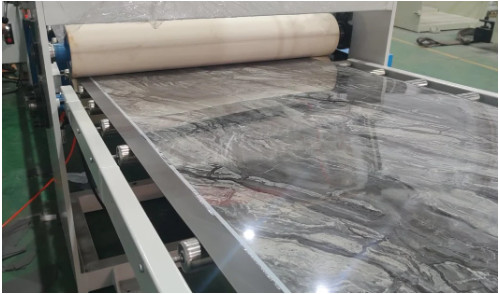

Cooling roller bed bracket
*Multi-group cooling rollers;
*Speed control by frequency inverter
*Compacting driving by pneumatic
*With adopts wear-resisting rubber roller

Rubber roller tractor
*Traction method : Active friction traction
*Roller size : Φ237mm*1500mm
*Material of roller : Rubber
*Clamping method : Pneumatic clamping
*Driving method Motor :2KW
*Traction speed : 0.4m-3.5m/min

Cutting machine ( including bracket)
*Max cutting width : 1500mm
*Max. Cutting length : 2500mm
*Cutting thickness range : 2mm -8mm
*Motor power : 4KW
*Fixed length switch : Photoelectric sensor

Automatic stacker

Length: 3000mm
PLC control

FAQ

1.How about the quality about this machine?
Answer: yes,my friend,please rest assured,we have nearly 10 years experience for this machine.quality is no problem.

2.How about the output about this machine?is the data real?
Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.

3.Wether you deliver in time?
Answer: sure,once we receive your full payment, then delivery immediately.

4.What about your after service?
Answer: we can send our engineers to you factory and offer long term technical guidance.
