Qingdao Sino-holyson Hot Sale 80 156 PVC WPC NFC Wood Composite Furniture Foam Board Making Machine
WPC PVC Foam Board making machine
Product Description:
Plastic board extrusion line is used to produce plastic board with width from 600 to 1830mm, which are effective,safe
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
Our PVC foam board machine includes the special Twin-screw extruder, mould and other auxiliary machines. We use twin-screw extruder with compact structure, superior performance. Besides the screw and barrel and die are designed by our company and made in world famous manufacturers. And use the high-performance alloy steel for professional processing. So the machine has the advantages of uniform plasticizing, stable extrusion, high output, and long life. We can supply you the best material formulation and all of technology
Process Flow:
Wood powder making machine→Mixer machine→WPC PVC Foam board exrtusion line→WPC PVC Foam board surface treatment machine (Paint printing, Filming and Hot pressing equipment)
| Model | 80/156 | 80/173 | 92/188 |
| width of product | 1220mm | 1560mm | 1560mm/1830mm |
| Extruder Model | SJSZ80 | SJSZ80 | SJSZ92 |
| Extruder Capacity | 300-400kg/h | 500-600kg/h | 700-800kg/h |
| Motor Power | 75KW | 90KW | 110KW |
| Total Length | 40 | 42 | 45 |

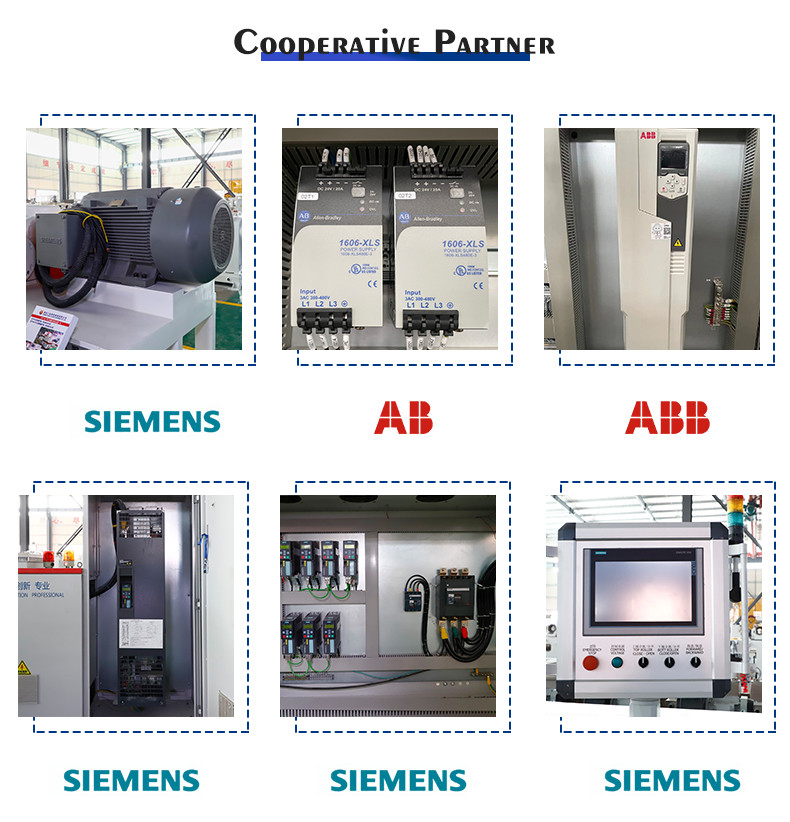

| Conical twin screw extruder (with automatic feeding system) | (1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider (6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA. |
| Mold | (1) Material: 40GR
(2) Size: Customized |
| Vacuum calibration and cooling table | (1) Material: Stainless steel
(2) Method: Enforced spraying (3) Diameter: Customized (4) Length: 6 m |
| Haul off machine | (1) Driving motor power: 2.2 kw (2) Transducer: Siemens transducer (3) hauling track type:110 plastic block (4) Pressing method:Pneumatic pressing |
| Cutting machine | (1) Motor power: 3 kw
(2) Method: Saw cutting
(3) Cutting scope: Customized
(4) PLC control system, using meter counter or sensor switch for the setting of desired length. |
| Stacker | (1) Material: Stainless steel
(2) Unloading method: Pneumatic unloading |
FAQ
Q: Your company is an industrial manufacture factory or a transactional company ?
A: Sino-holyson Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines and total revenue is about USD 2500000
Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line?
A: Yes
Q:How many QA/QC inspectors in total?
A: 4
Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)
