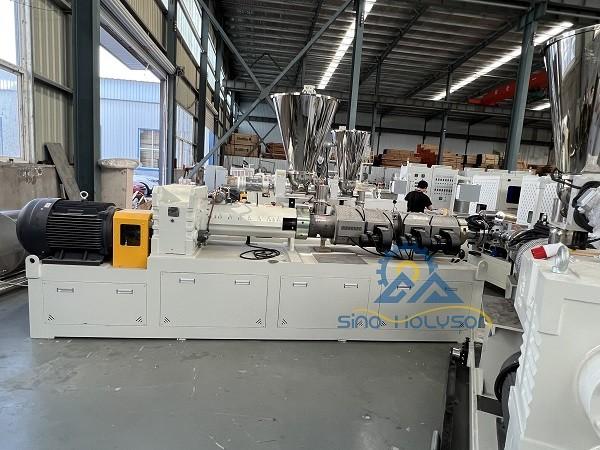

Co-Extrusion Crust Foam White Plastic PVC WPC Celuka Forex Skinning Foam Board Sheet Extruder Extrusion Production Line
PVC WPC Celuka Forex Skinning Foam Board Sheet Extruder Extrusion Production Line
Product Description:
PVC foamed board belongs to the new environmental protection material, called no defect board in foreign countries, and the double post, no oil leakage, no water seepage, scratch resistant, also called blister board, base material of density board, surface by vacuum blister or adopt a seamless and PVC film pressure molding process, green non-polluting, renewable, is the ideal alternative ambry materials, and the people life more convenient, the most suitable. Door plate in normal size without edge, waterproof, moisture-proof, hardness and flexibility.
PVC board has excellent chemical stability, corrosion resistance, high hardness, high strength, anti-uv (aging resistance), fire resistance and flame retardant (with self-extinguishing), reliable insulation performance, smooth surface, not water absorption and deformation, easy processing and other characteristics.
PVC foam board is widely used in indoor whole house decoration, cabinet board, bathroom cabinet, carving, shelf showcase, storage box, landscape garden model, advertising lettering, PVC flower box, fish tank bottom cabinet, toilet door, etc.
Process Flow:
Wood powder making machine→Mixer machine→WPC PVC Foam board exrtusion line→WPC PVC Foam board surface treatment machine (Paint printing, Filming and Hot pressing equipment)
| Model | 80/156 | 80/173 | 92/188 |
| width of product | 1220mm | 1560mm | 1560mm/1830mm |
| Extruder Model | SJSZ80 | SJSZ80 | SJSZ92 |
| Extruder Capacity | 300-400kg/h | 500-600kg/h | 700-800kg/h |
| Motor Power | 75KW | 90KW | 110KW |
| Total Length | 40 | 42 | 45 |
| Conical twin screw extruder (with automatic feeding system) | (1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider (6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA. |
| Mold | (1) Material: 40GR
(2) Size: Customized |
| Vacuum calibration and cooling table | (1) Material: Stainless steel
(2) Method: Enforced spraying (3) Diameter: Customized (4) Length: 6 m |
| Haul off machine | (1) Driving motor power: 2.2 kw (2) Transducer: Siemens transducer (3) hauling track type:110 plastic block (4) Pressing method:Pneumatic pressing |
| Cutting machine | (1) Motor power: 3 kw
(2) Method: Saw cutting
(3) Cutting scope: Customized
(4) PLC control system, using meter counter or sensor switch for the setting of desired length. |
| Stacker | (1) Material: Stainless steel
(2) Unloading method: Pneumatic unloading |
FAQ
Q: Your company is an industrial manufacture factory or a transactional company ?
A: Sino-holyson Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines and total revenue is about USD 2500000
Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line?
A: Yes
Q:How many QA/QC inspectors in total?
A: 4
Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)
